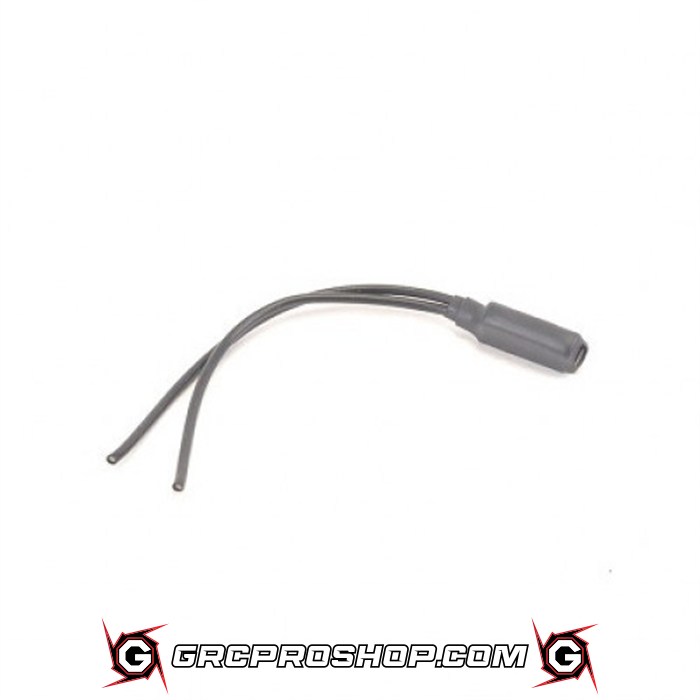

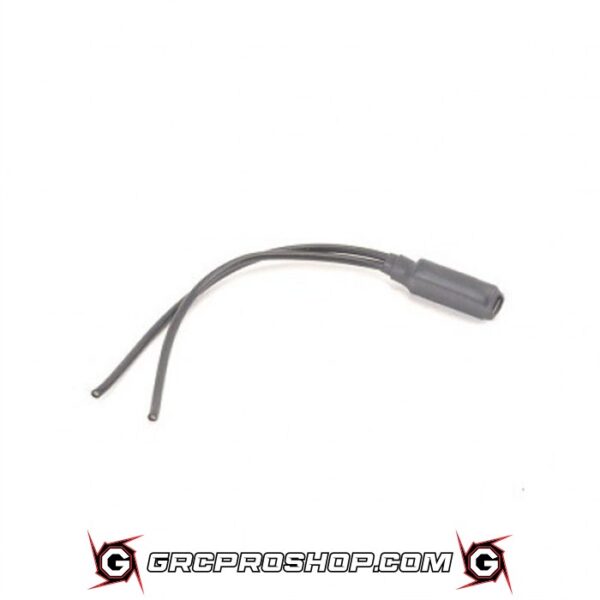

RC Dynamics RCD0001 – 1S Super Low ESR Power Capacitor
The 1S Ultra Low ESR Power Capacitor mzinimises power losses to give greater performance!
As used to win the IFMAR 2020 1/12th Stock World Championship by Andy Murray. Also installed in the winning cars at the European Championships and at UK National level.
The primary purpose of the ESC power capacitor is to minimise power losses caused by the high frequency switching currents generated during motor commutation/control. The goal being to maximise ESC performance and minimise the heat generated in the internal circuits. It is very important that the ESC has a power source with minimal source impedance.
The latest LiPo batteries used in 1S on road racing now already provide an incredibly low internal resistance. Therefore in order for the capacitor to provide maximum benefit it must have an ESR (Effective Series Resistance) at the relevant frequencies, at least an order of magnitude less than the LiPo battery internal resistance. The traditional Aluminium Electrolytic power caps do not have such a low ESR.
The RC Dynamics 1S Super Low ESR Power capacitor, is manufactured using the highest performance components available and is tailored to suit RC models powered by a 1S Lipo Voltage source.
Can be used in Stock and Modified classes.
