FLY SKY FSY-FS-R7P – FS-R7P 2.4GHz 7-Channel ANT Receiver

Description

FLY SKY FSY-FS-R7P – FS-R7P 2.4GHz 7-Channel ANT Receiver

Receiver Overview:

FlySky FS-R7P 2.4GHz 7-Channel ANT Receiver. The FS-R7P receiver features Flysky’s third-generation automatic frequency hopping digital system (AFHDS 3) and uses a single-antenna bidirectional transmission system. It includes a high-performance gyroscope, is PPX6 splash-proof, and supports battery voltage detection. Fully adaptable to drift, entertainment, FI, and linear acceleration cars, it also offers four Newport function interfaces that can be customized for i-BUS2, S.BUS, i-BUS, PPM, and more. This receiver is compatible with AFHDS 3 protocol transmitters, with the Noble series enabling the gyroscope function.

Features:

• Seamless integration with compatible FlySky ANT Transmitters
• Lightweight and compact, making it suitable for a wide range of applications
• Easy-to-use bind button for quick and straightforward binding
• Operates efficiently within a wide voltage range, making it versatile for different power supply setups
• Fail-safe settings enhance safety by ensuring the model behaves predictably in case of signal loss
• Utilizes the ANT protocol

Specifications:

• Input Voltage: 3.5-8.4V
• Frequency: 2.4GHz
• Channels: 7Ch
• Protocol: ANT
• Antenna: Single
• Dimensions: 1.3×0.9×0.5in (35×23.3×13.3mm)
• Weight: 0.28oz (8g)

Includes:

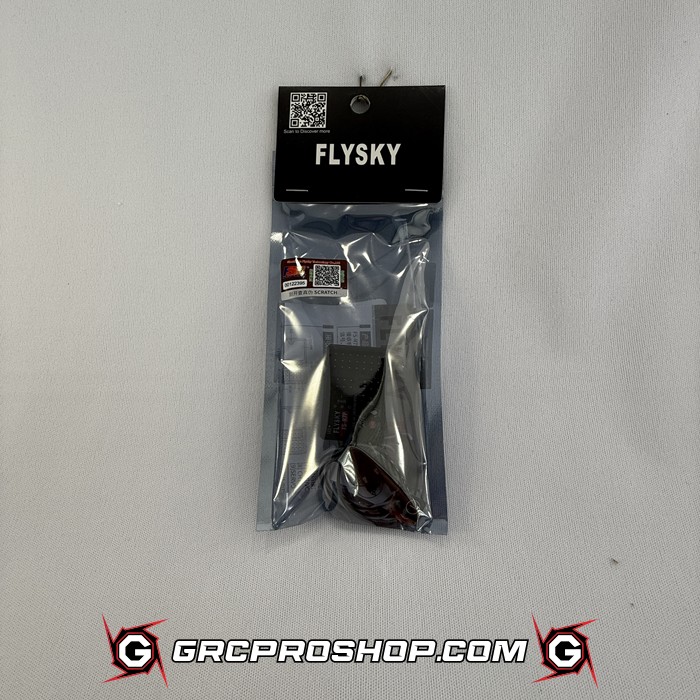

• (1) FS-R7P 2.4GHz 7-Channel ANT Receiver
